BAMBI Schematics


NEW! Printed circuit board layouts for many of the BAMBI schematics
are here for download, thanks to John Perterson! (PC Board packages
are in ZIP format, and include Gerber files, Eagle PCB files, and .JPG images)

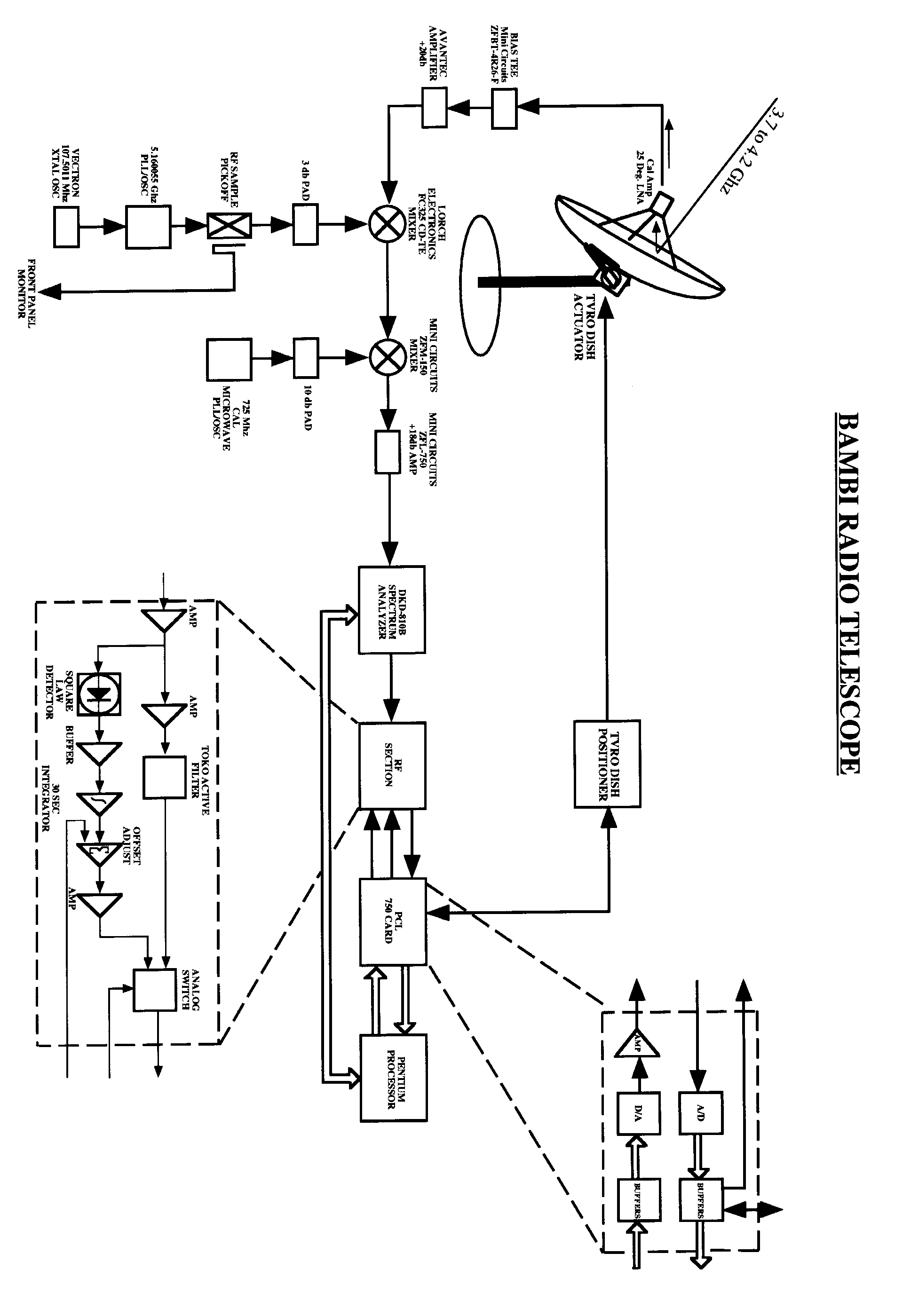

BAMBI Block Diagram

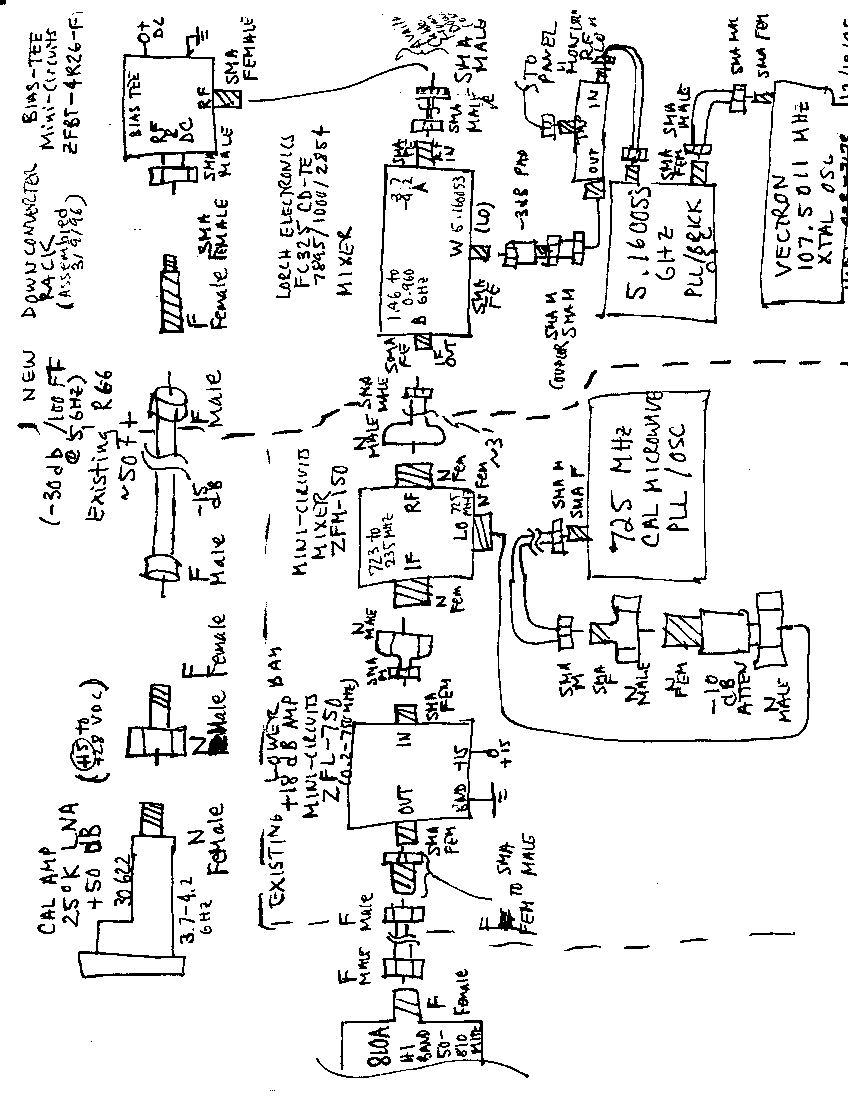

Microwave Front End

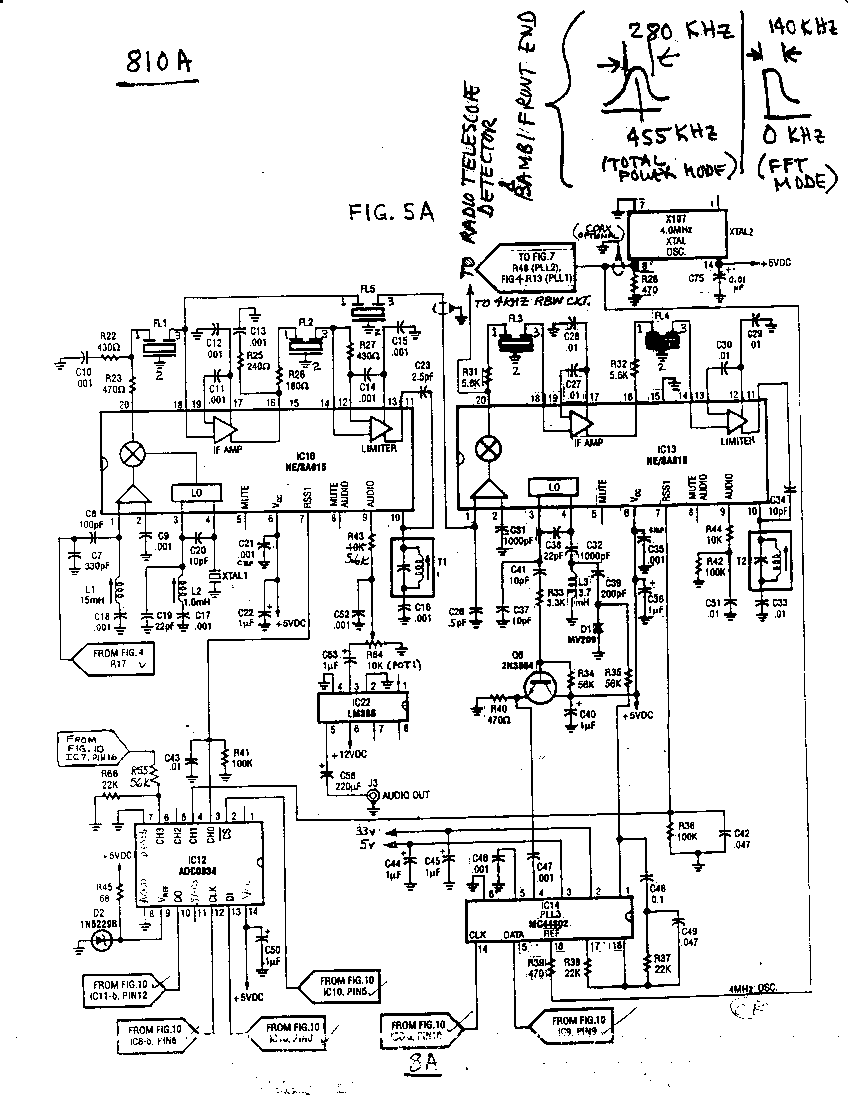

810A Spectrum Analyzer Tap Off Point

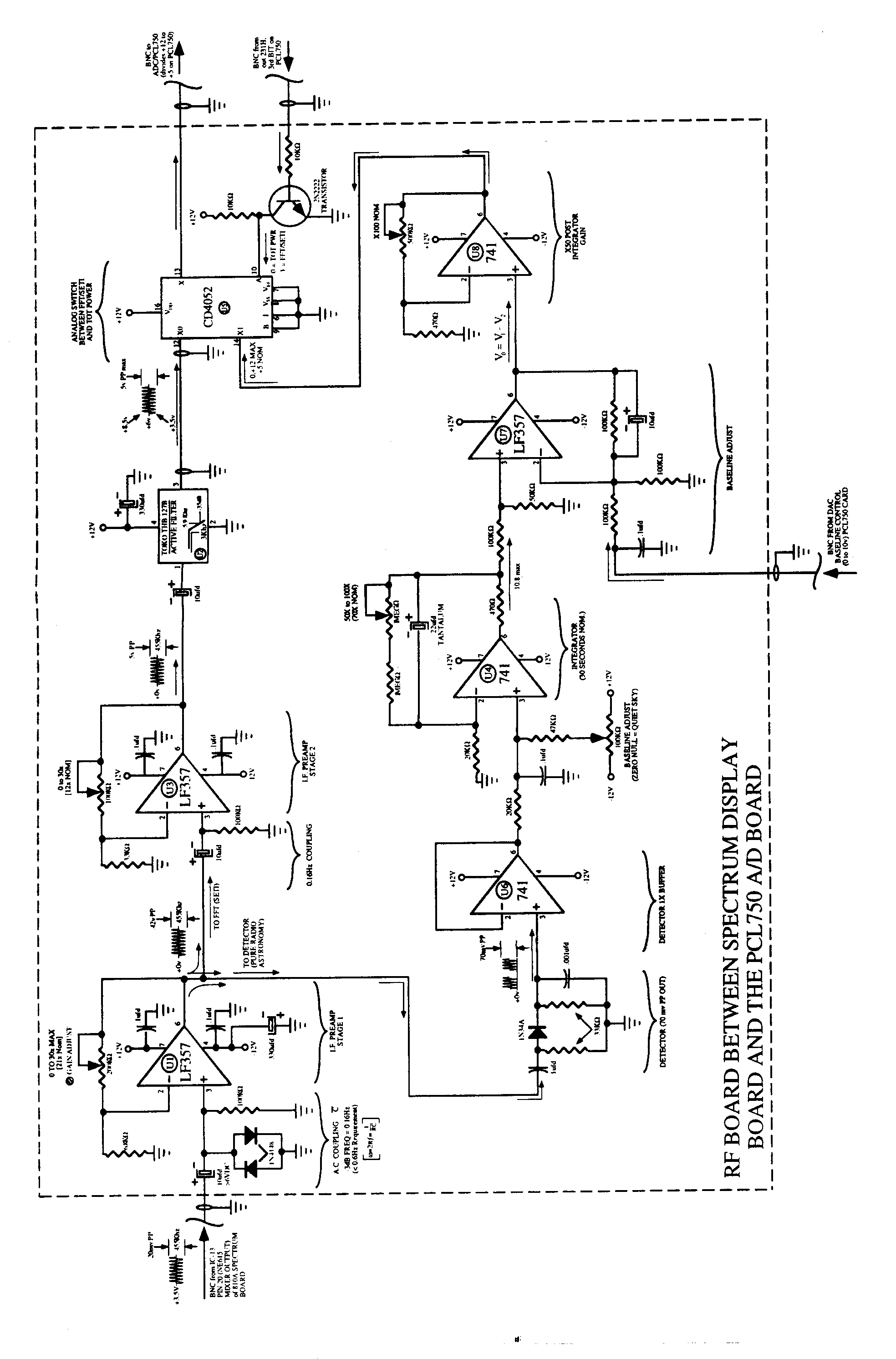

IF, Total Power Detector, and FFT Low Pass Filter

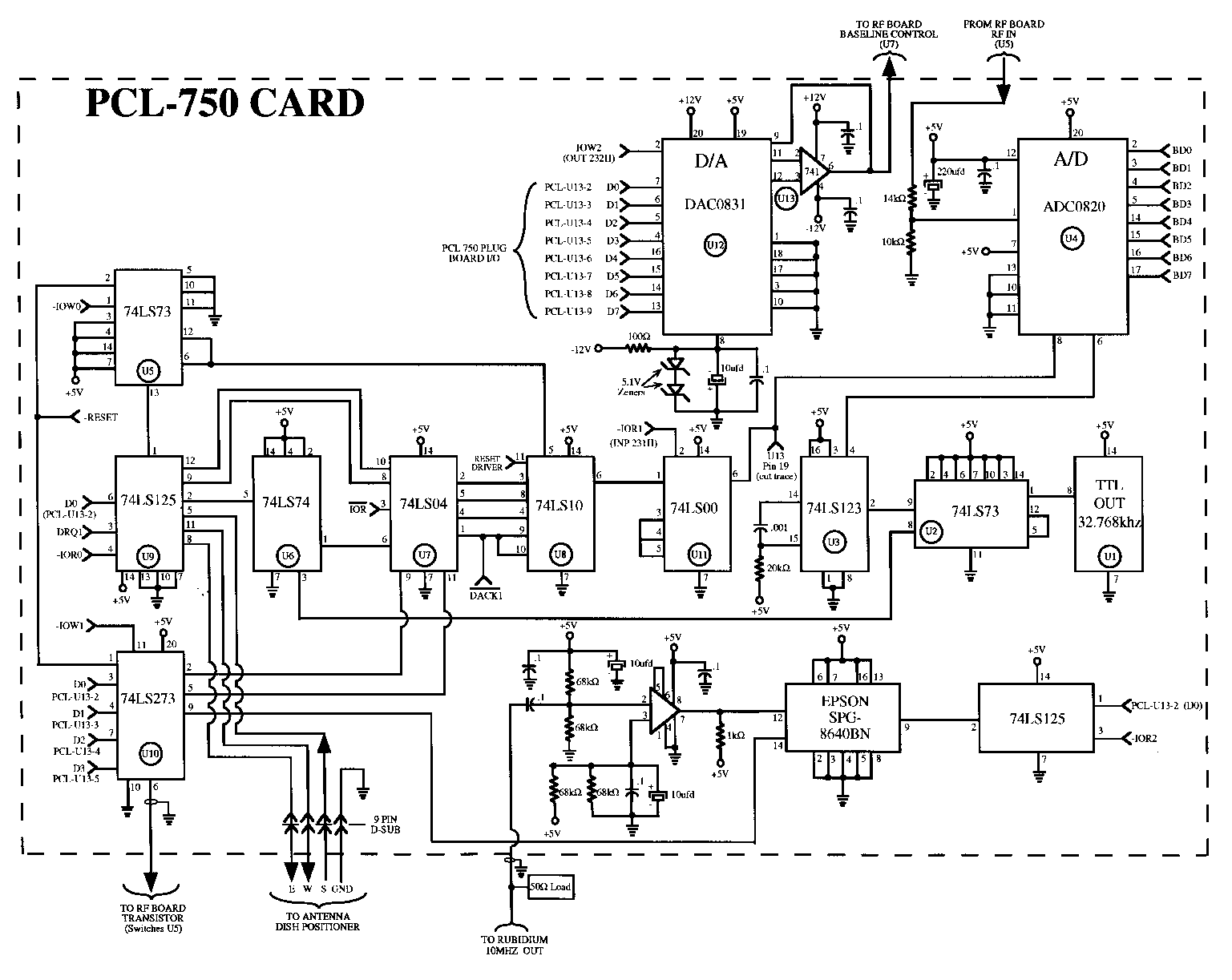

Total Power & 8K FFT ADC, Baseline DAC, Positioner Control

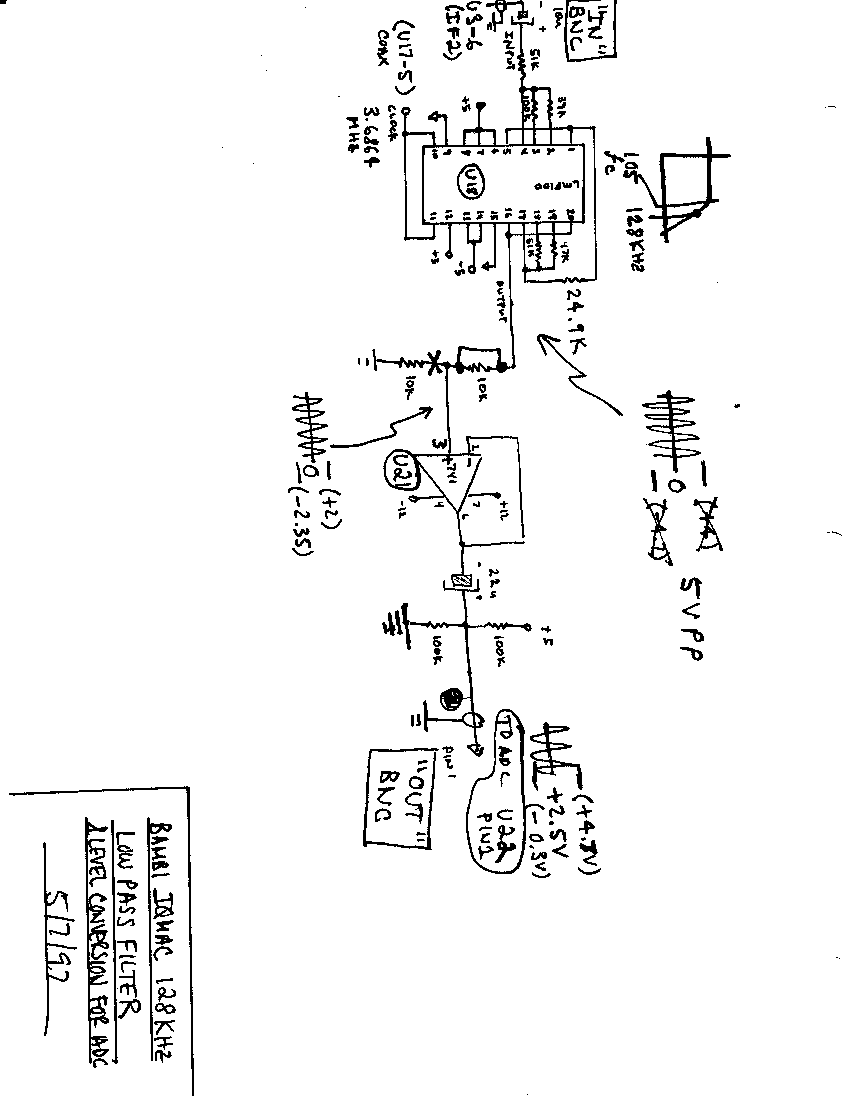

128 KHz Low Pass Filter   (PC Board)

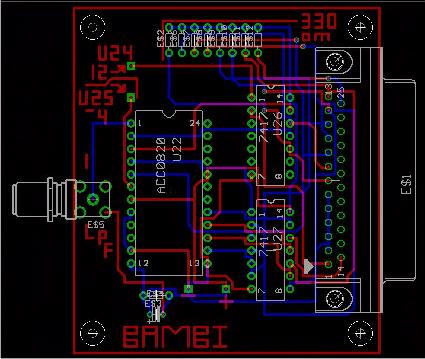

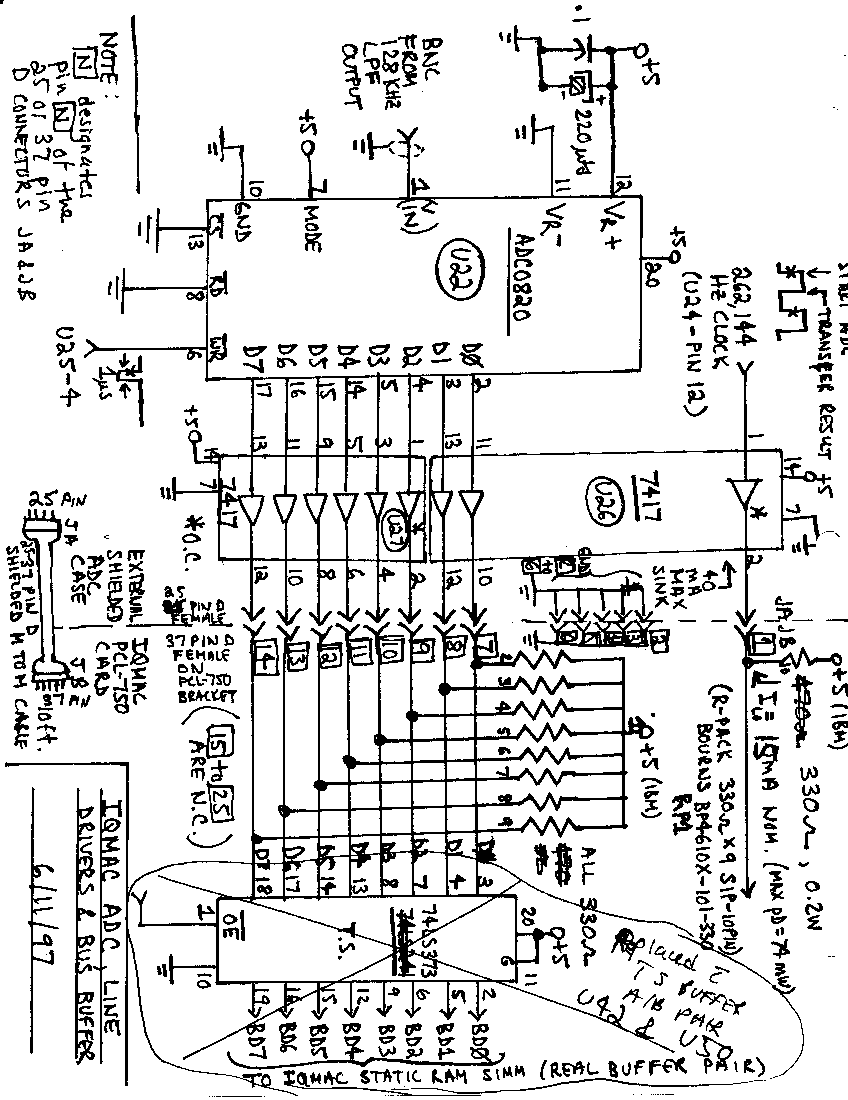

256K FFT ADC   (PC Board)

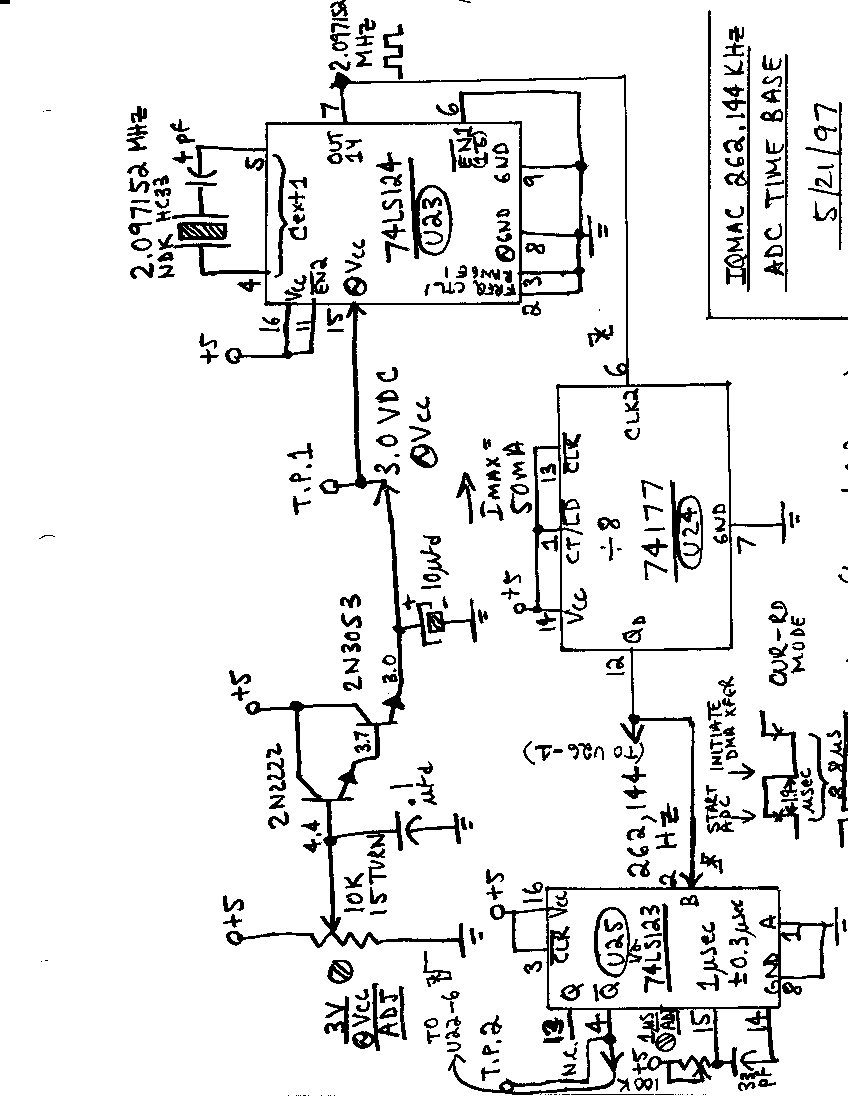

Timebase for 256K ADC (PC Board)

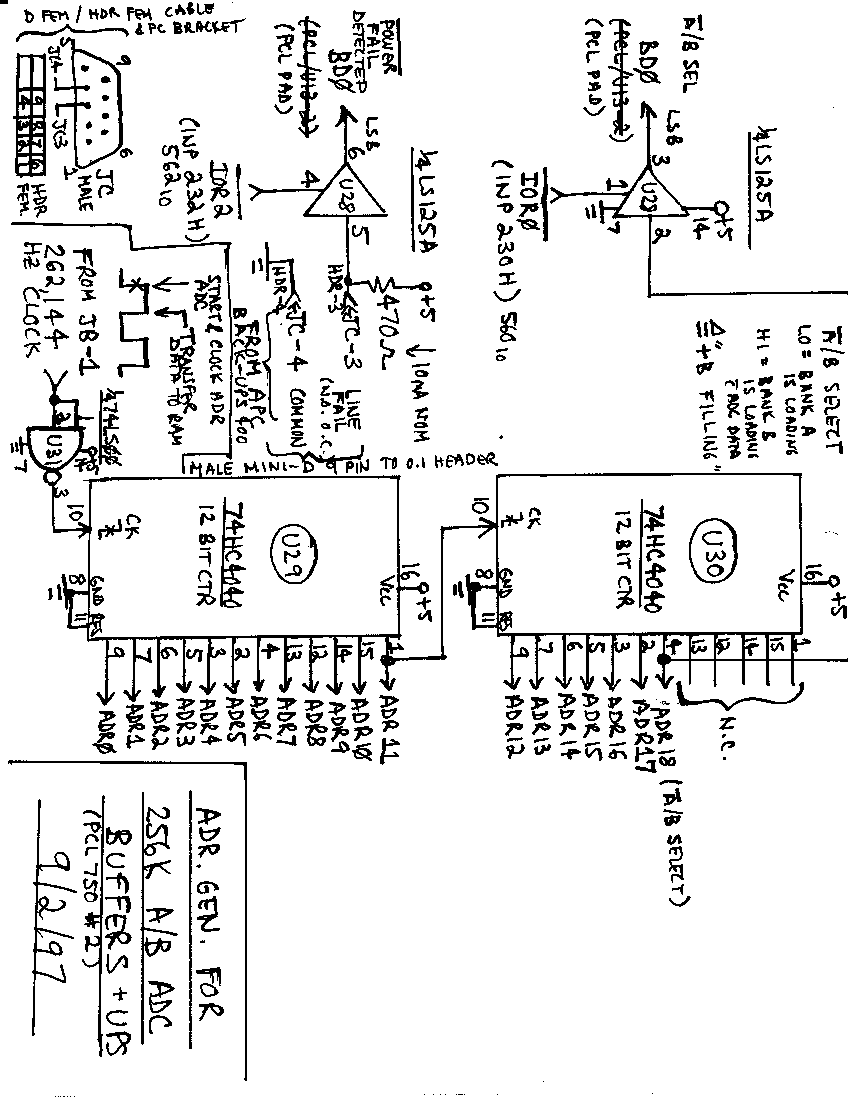

256K FFT Dual Buffer Address Generator and UPS (PC Board)

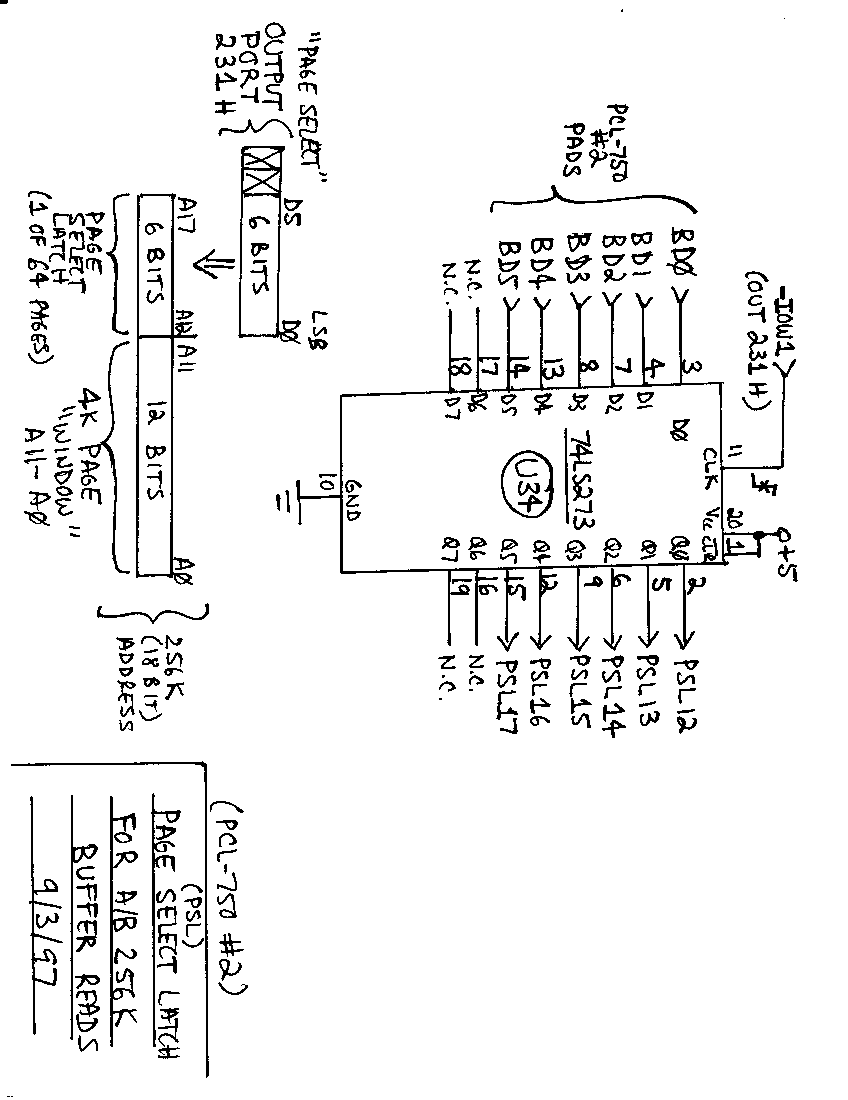

Page Select Latch for PC's A/B 256K Buffer Reads (PC Board)

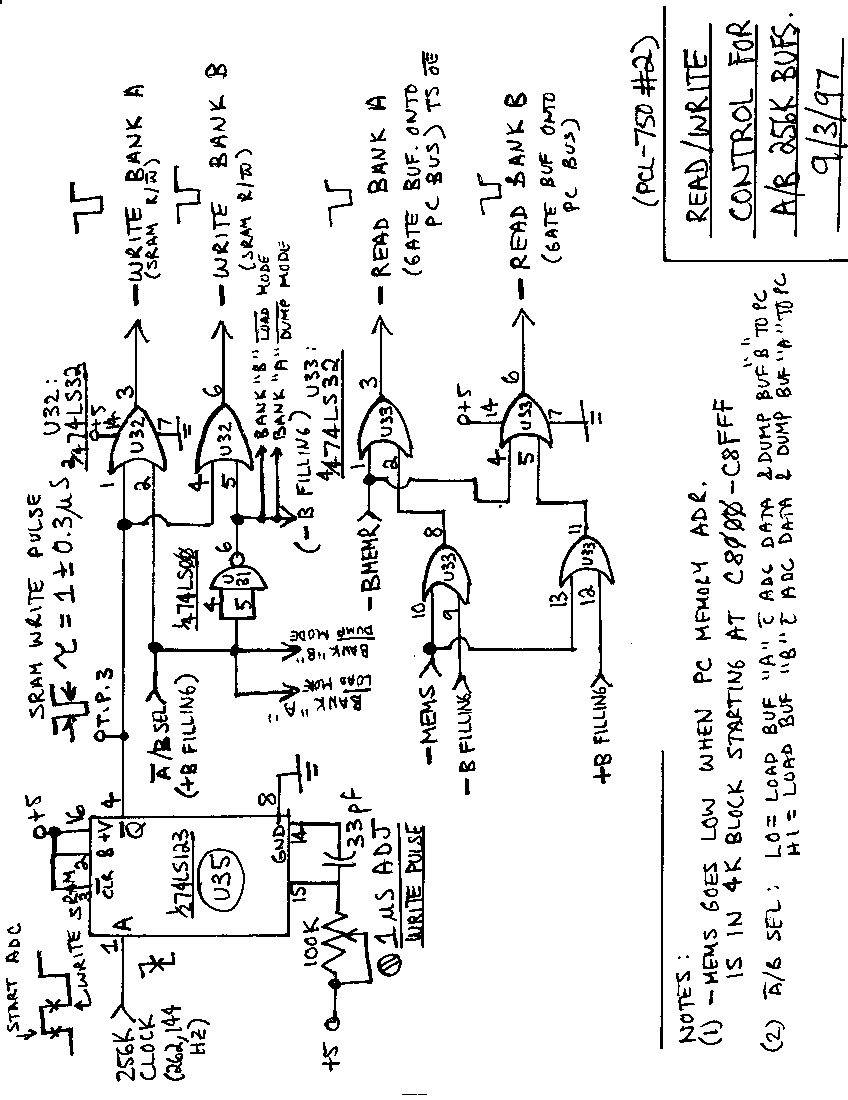

Read/Write Control for Dual 256K Buffers  (PC Board)

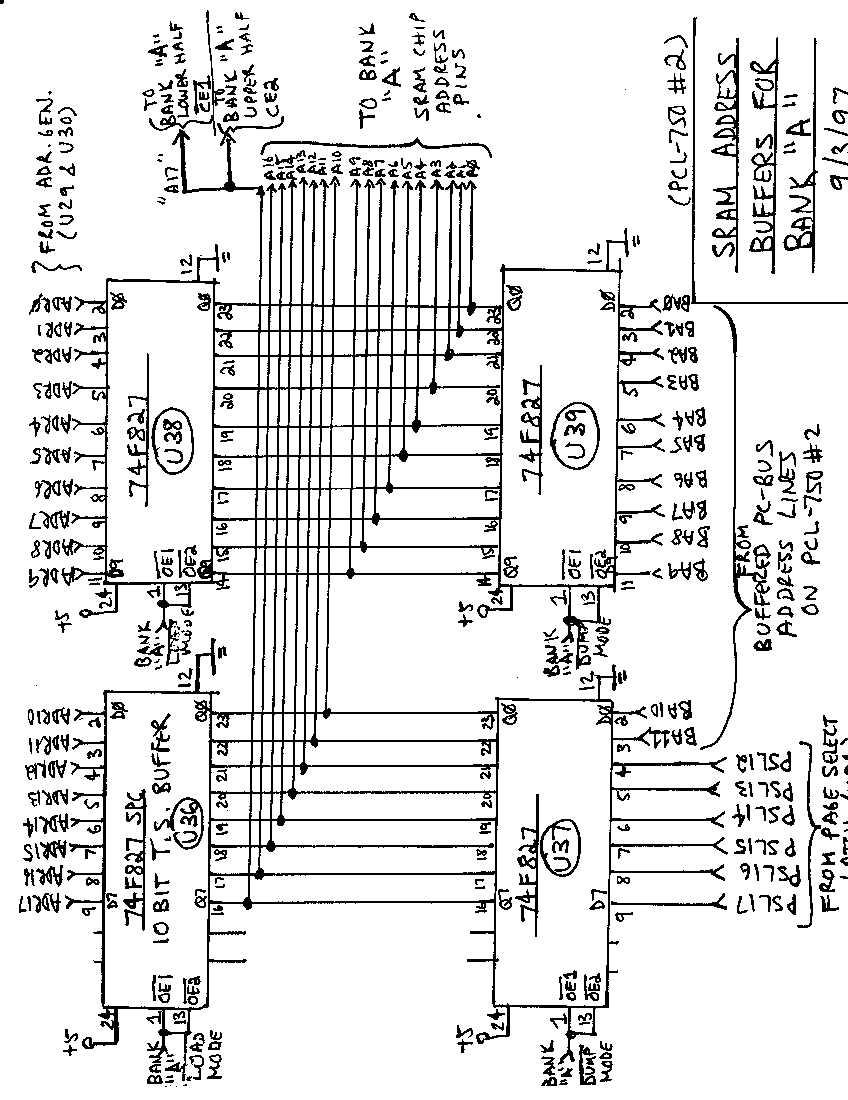

Address Buffers for 256K Bank "A"  (PC Board)

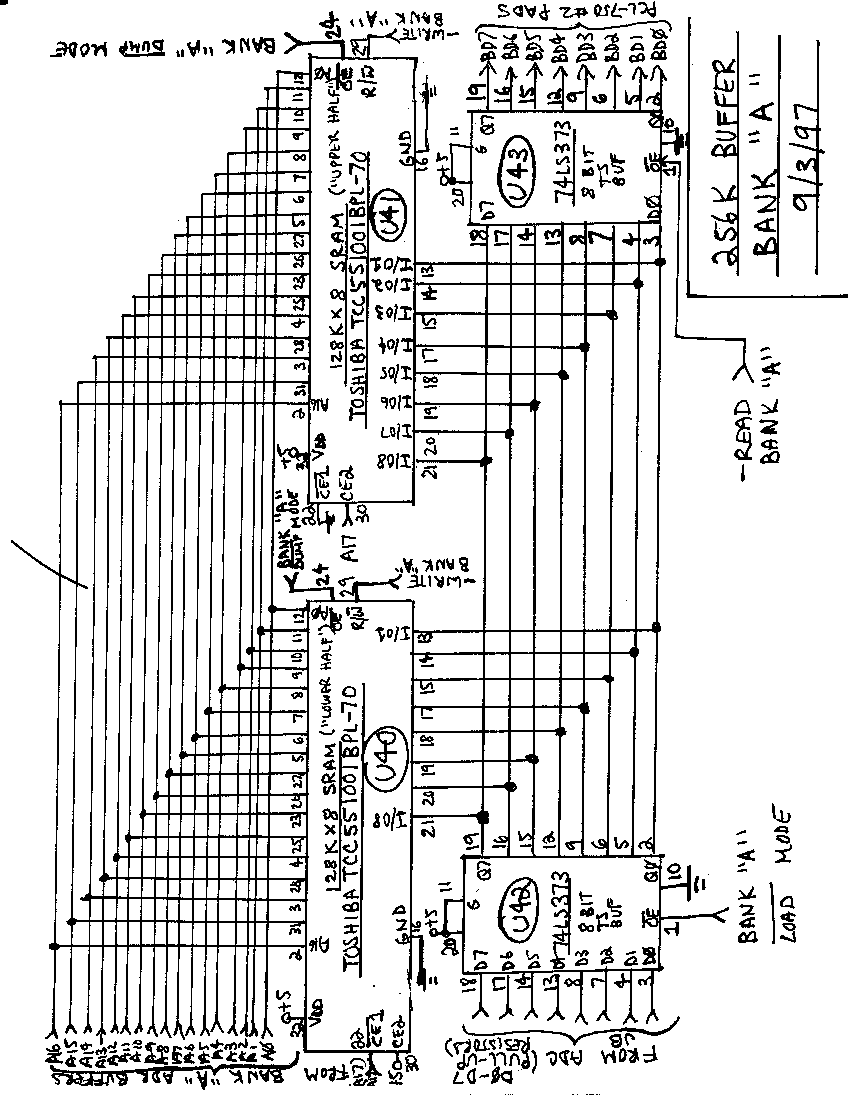

256K Static RAM, Bank "A"  (PC Board)
Address Buffers for 256K Bank "B"  (PC Board)

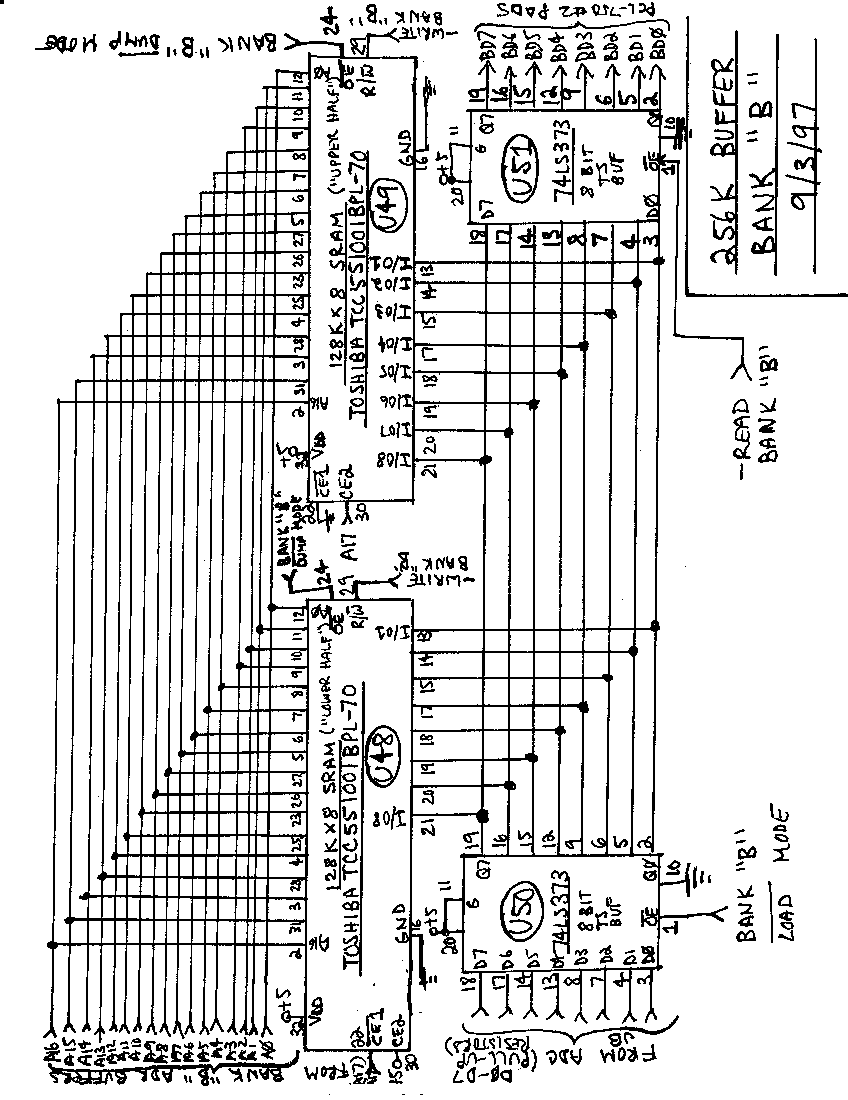

256K Static RAM, Bank "B"  (PC Board)

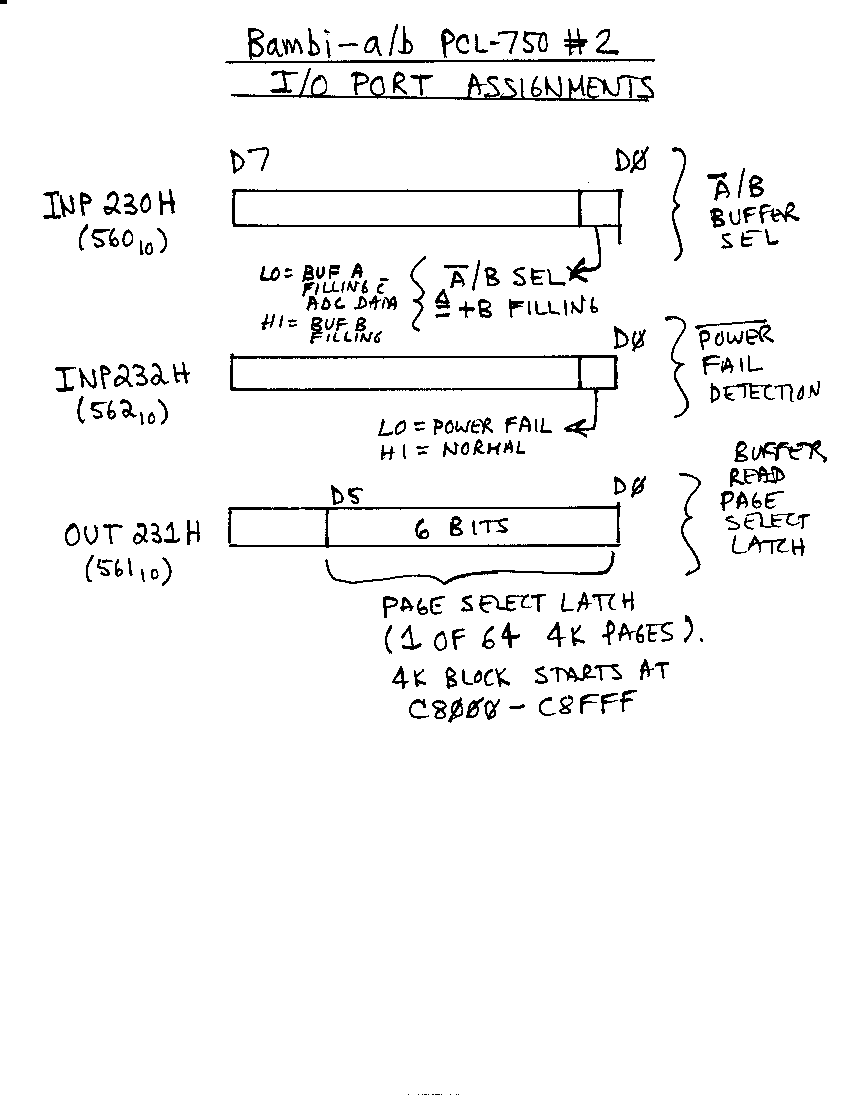

I/O Port Assignments

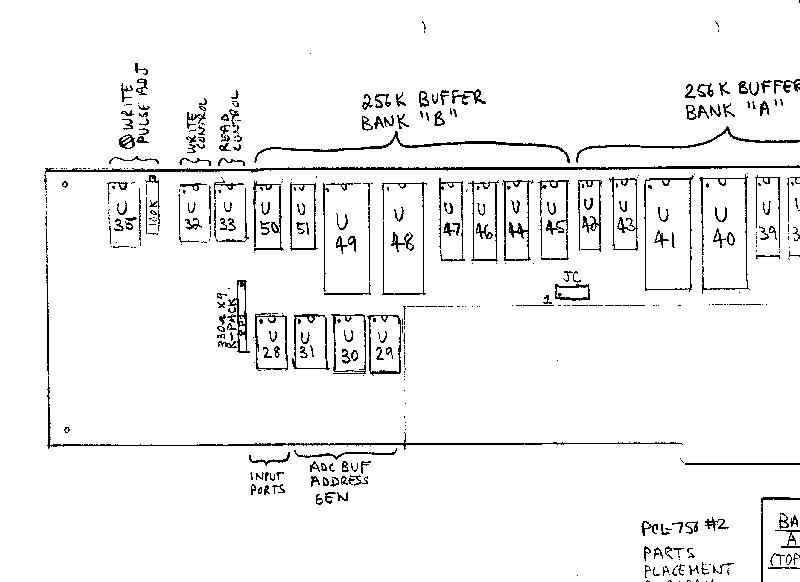

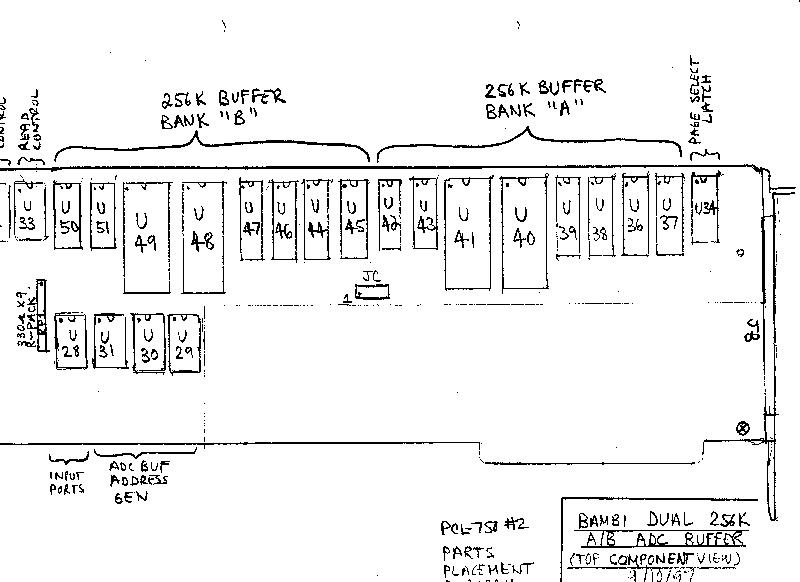

ISA Dual 256K Buffer Board Parts Placement:   (Part 1/2)   (Part 2/2)
Notes from John Peterson about the PC boards:
Here are a couple of board houses too:

                        http://www.pcbexpress.com
                        http://www.rdcircuits.com
                        http://www.circuitboards.com
                        http://www.graphicsproductsinc.com
                        http://www.teknicircuits.com


All those board houses are the ones I know of that accept Eagle
files.  Also the homepage for the Eagle PCB program is
http://www.cadsoftusa.com in case anyone wants to edit or view the boards
with the original program.  I use the registered professional version, but
the freeware version should be able to open/view and print the boards, but I
don't think it will be able to edit them.
